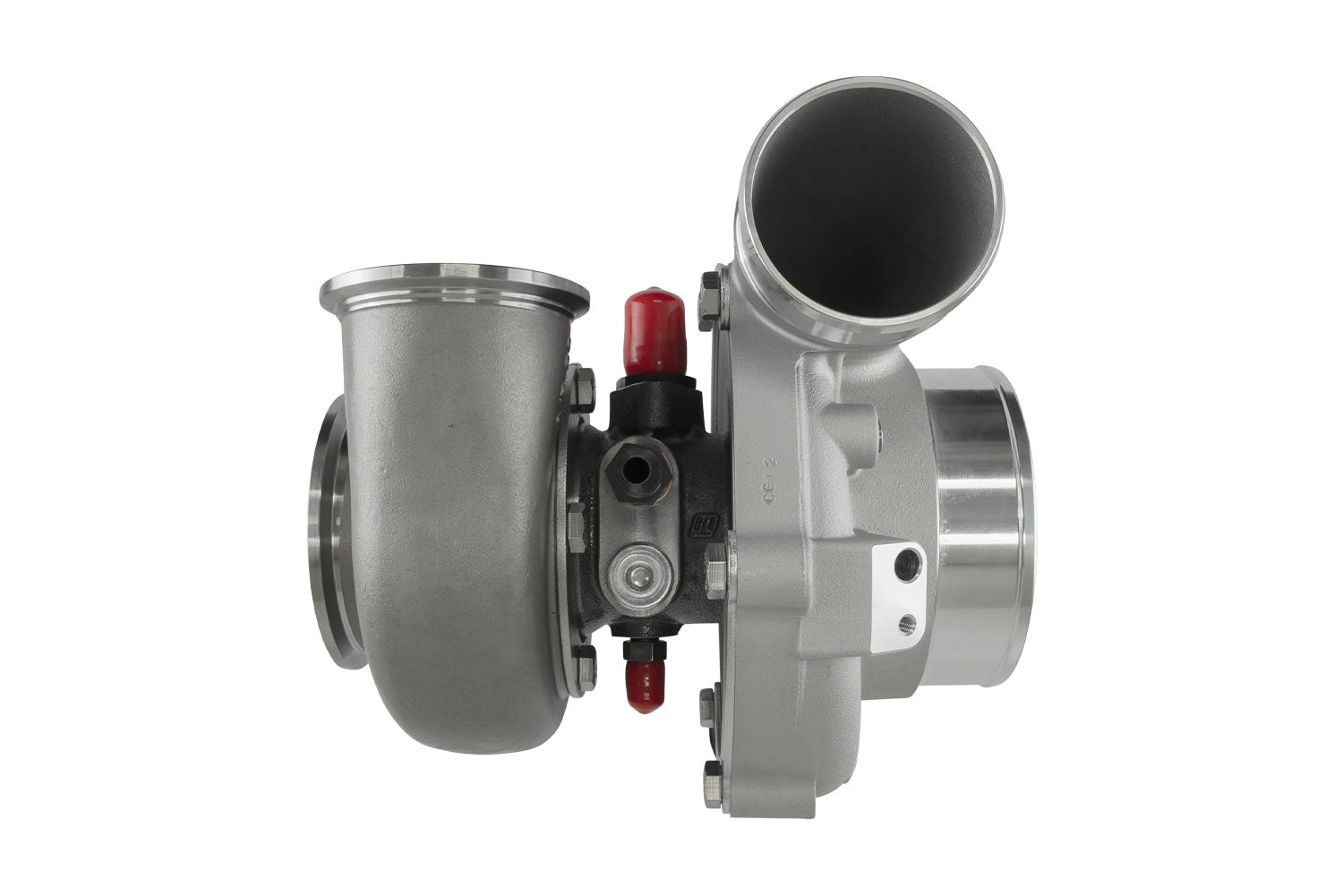

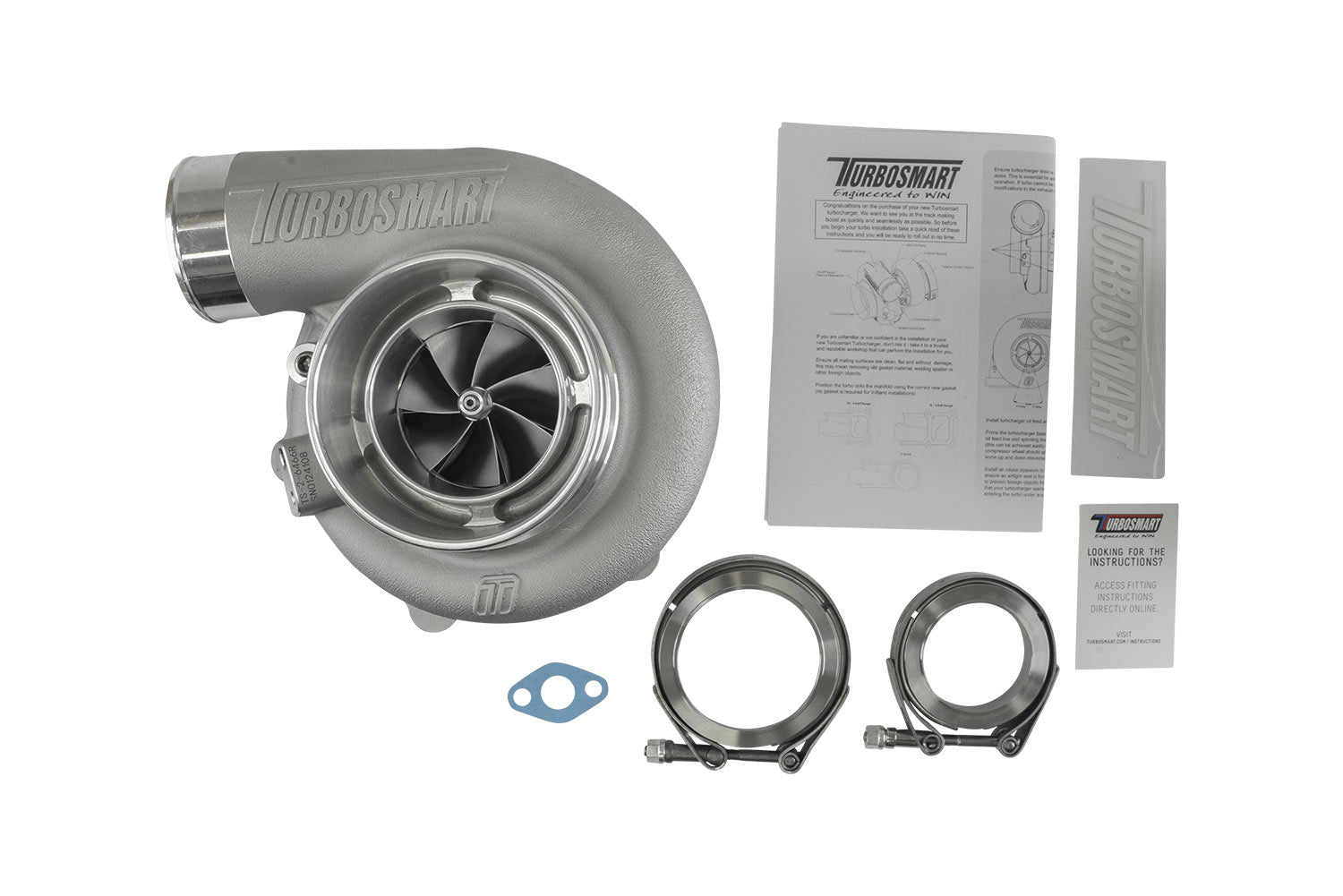

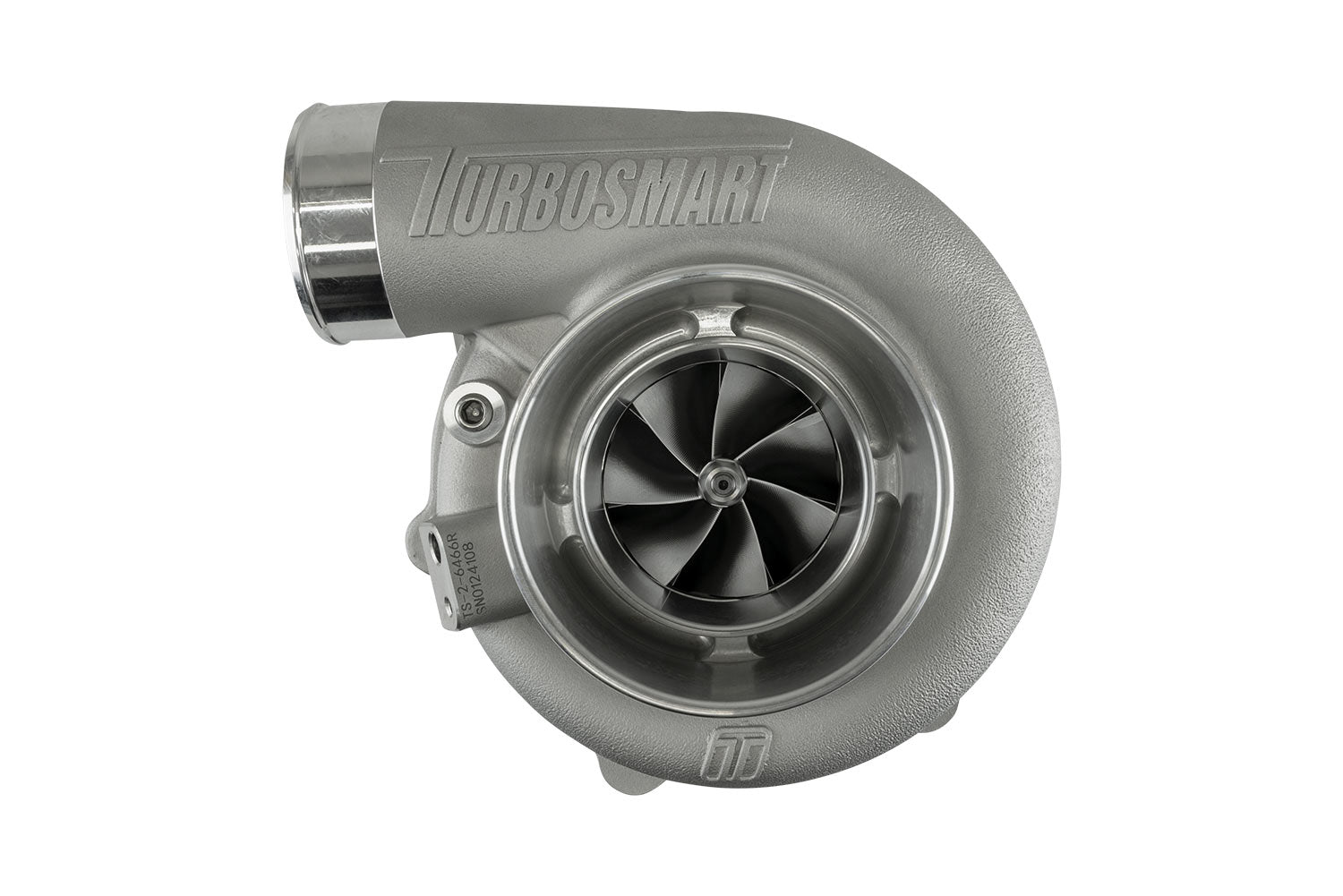

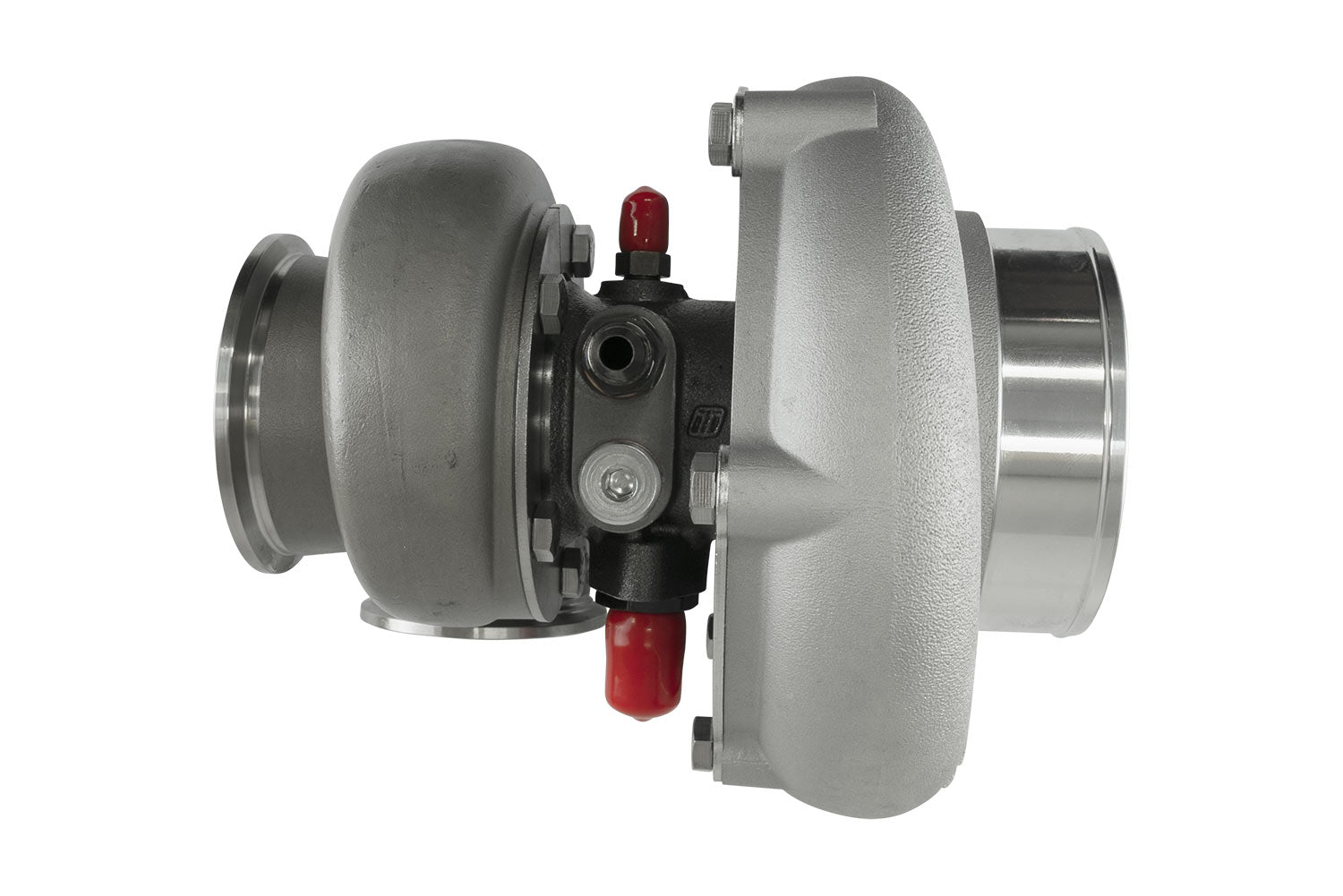

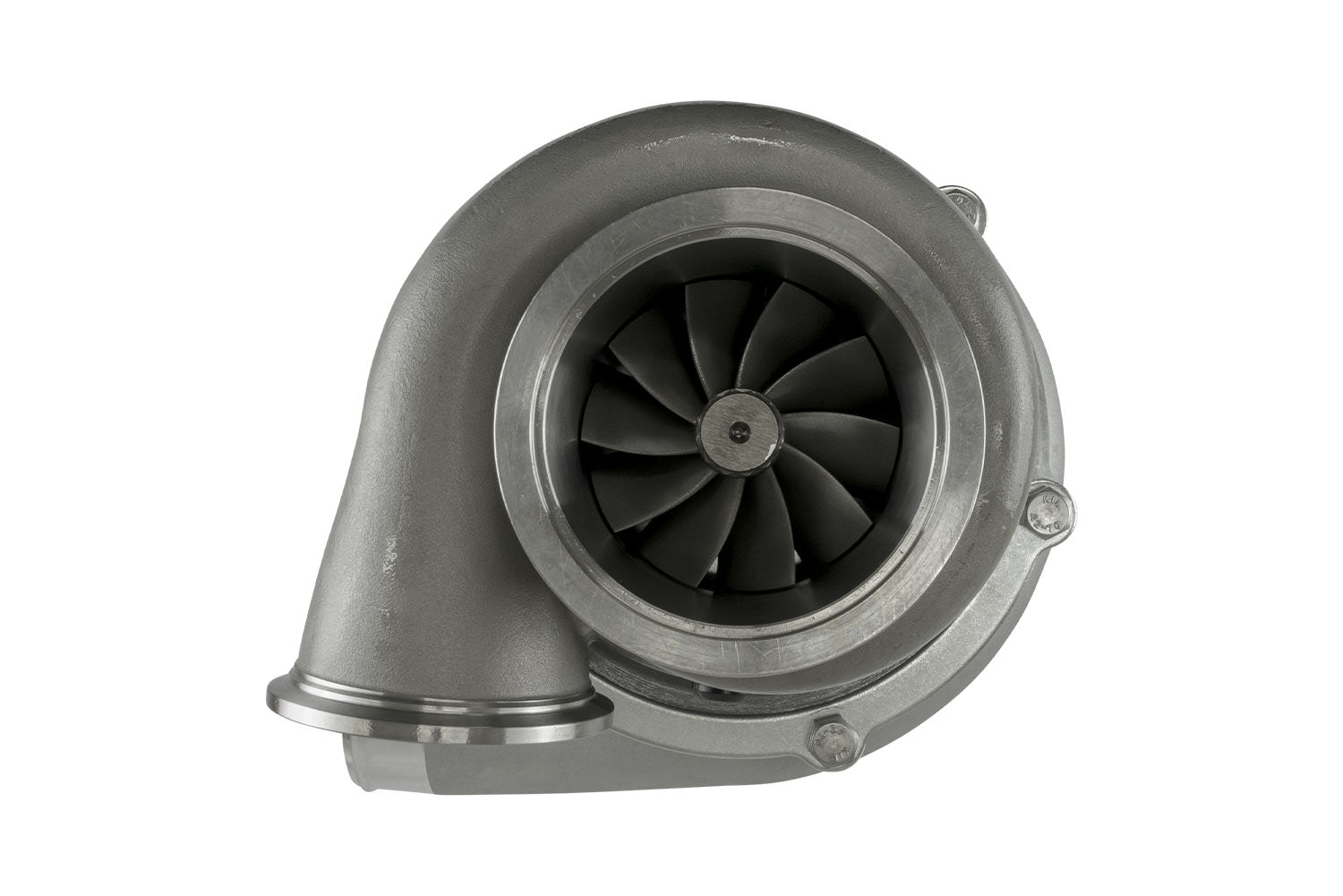

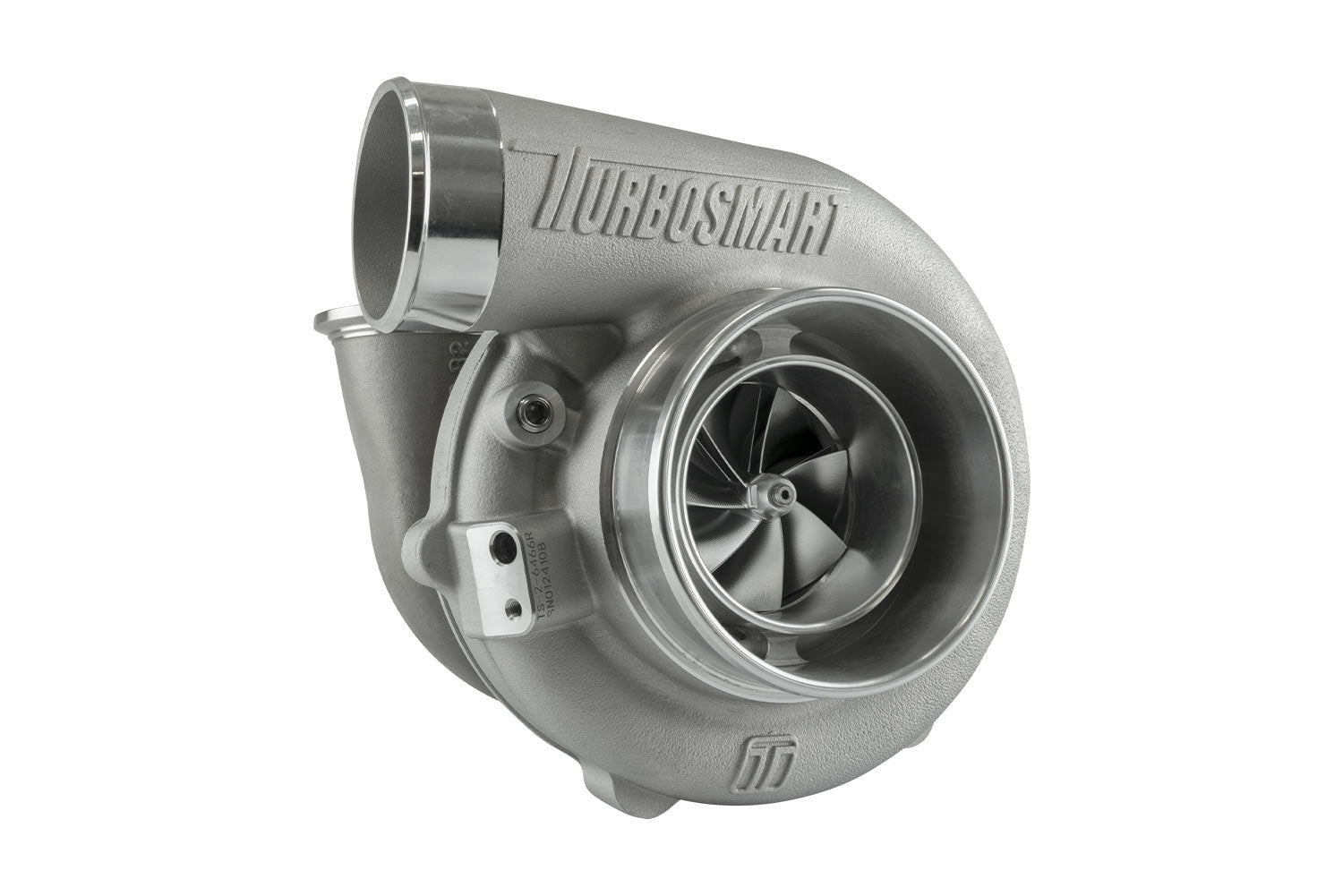

TS-2 Turbocharger (Water Cooled) 6466 V-Band Reverse Rotation 0.82AR Externally Wastegated

Features

-Unparalleled transient response
-Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
-Lightweight 310s stainless steel investment cast turbine housings
-Lightweight, Aluminium compressor covers
-CFD-driven designed housings for optimal ARs and flow
-713C Inconel turbine wheel for extreme EGT’s
-VSR speed balanced
-Proprietary dual ceramic bearing system
-Integrated Iron backplate on center housing

Specifications

-Compressor Inlet: 4″ / 101.6mm
-Compressor Inducer: 64mm
-Turbine Inlet: V-Band (2.25″)
-Turbine Exducer: 66mm
-Turbine AR: 0.1.00
-Turbine Outlet: V-Band (3.00″)
-Weight: 6.06kg / 13.3lbs
-Horsepower Rating: 825-955HP
