TiAL MV-R 44mm Universal Wastegate

Included with every Tial V44:

• MV-R Assembly
• MV-R Valve Seat
• Inlet V-band clamp
• Inlet Flange
• Outlet V-Band Clamp
• Outlet Flange
• 2 TiAL Air Fittings

Features:

• High temp NiCrFe based alloy is used for valve and 347SS valve housing
• Offers longer product life compared to competing designs.
• High temperature silicone Nomex reinforced actuator diaphragm.
• 17-7 PH Stainless Steel actuator spring gives consistent pressure
• At high temperatures, resists "relaxing" at temperature to 900F (483C).
• Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
• All Stainless Steel hardware.
• Mating weld flanges are 304L

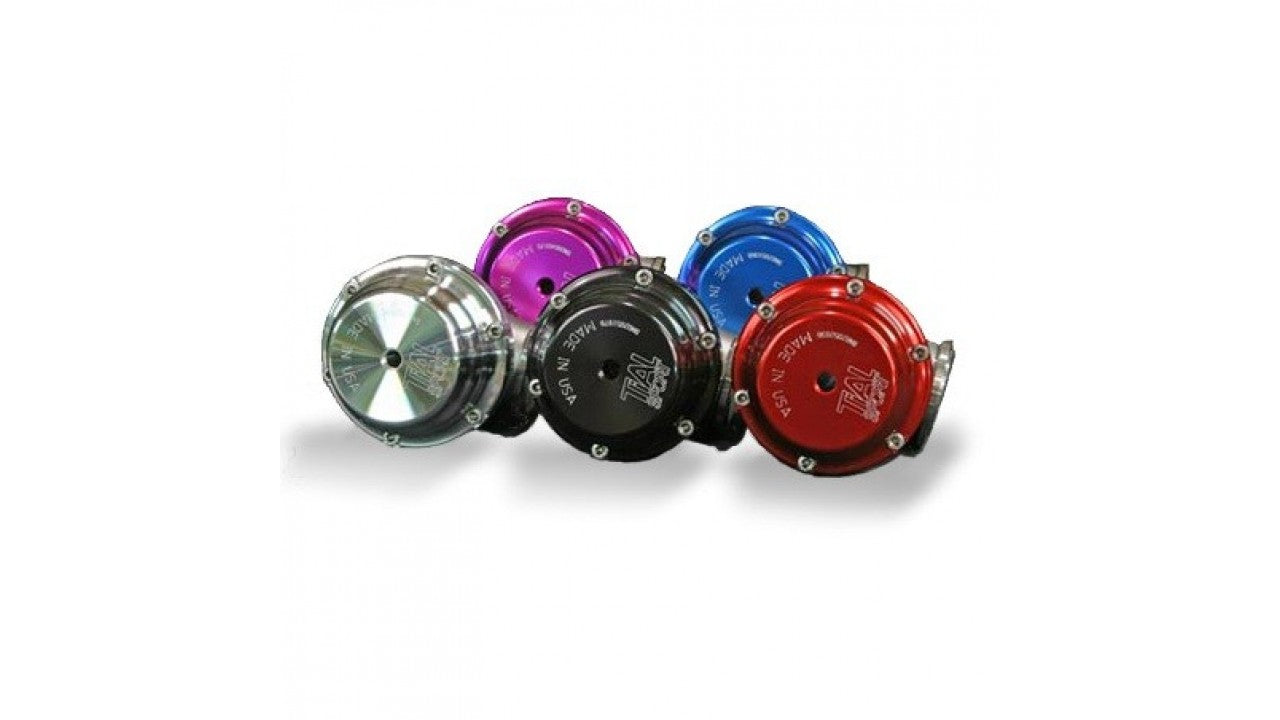

• Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black). Please select below.
• 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
