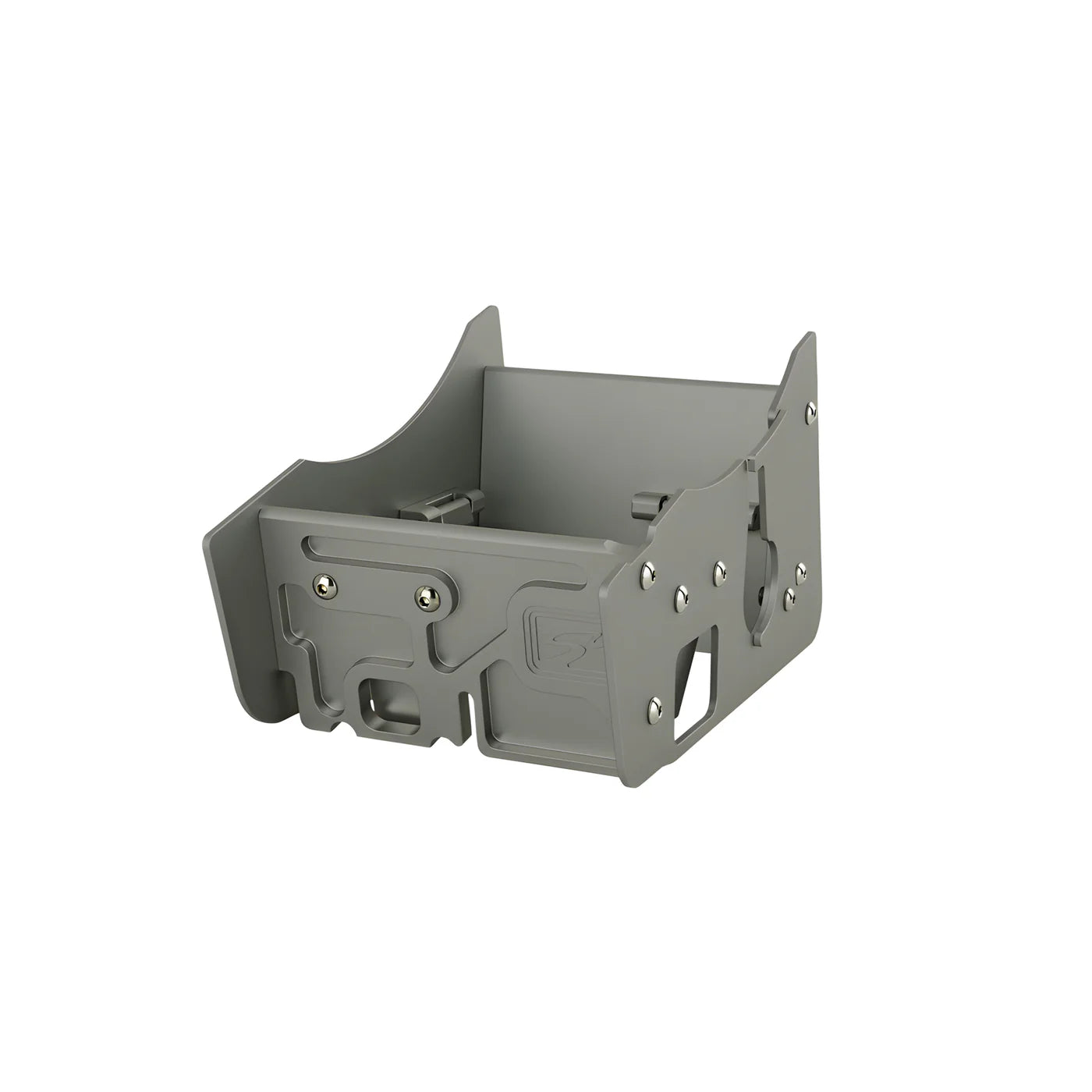

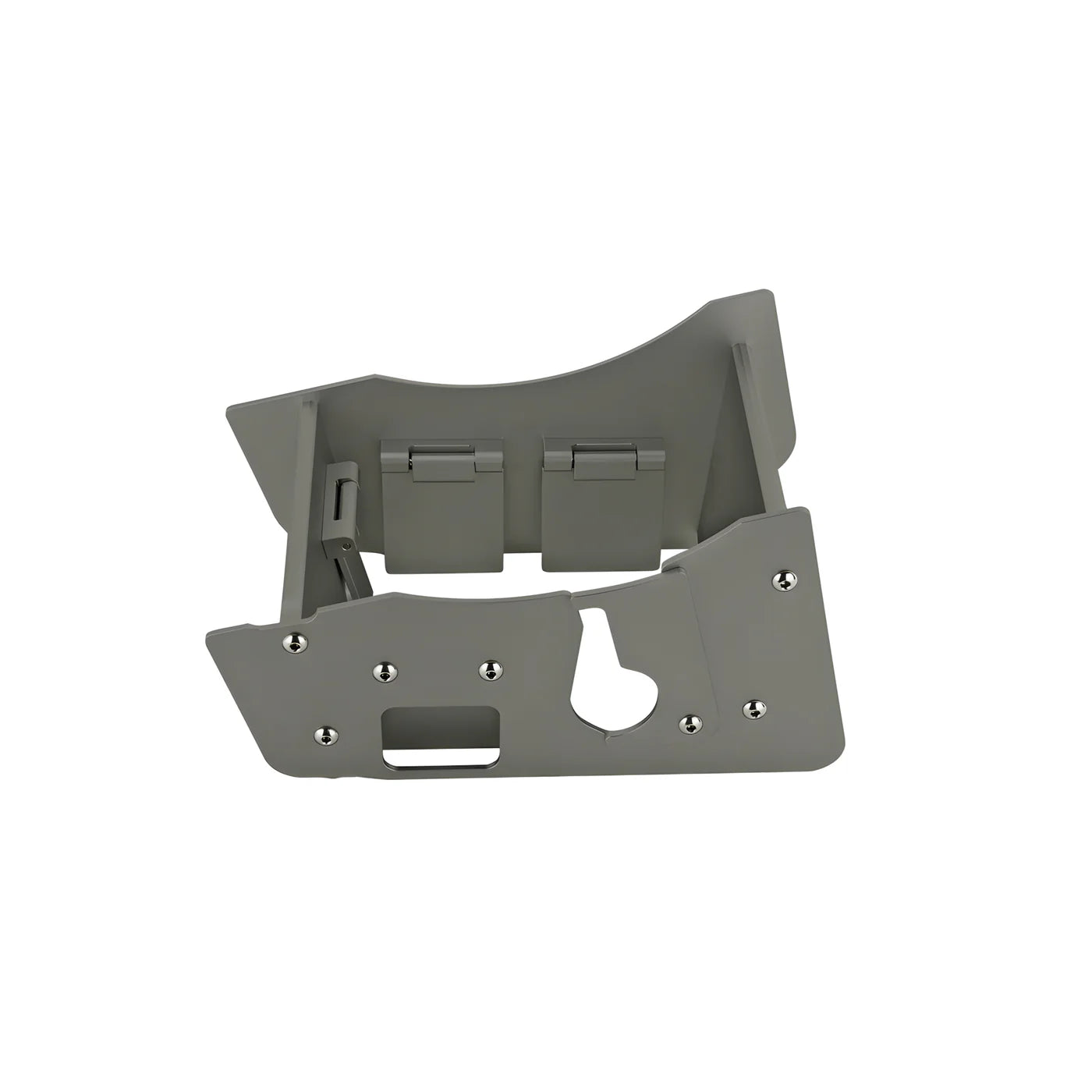

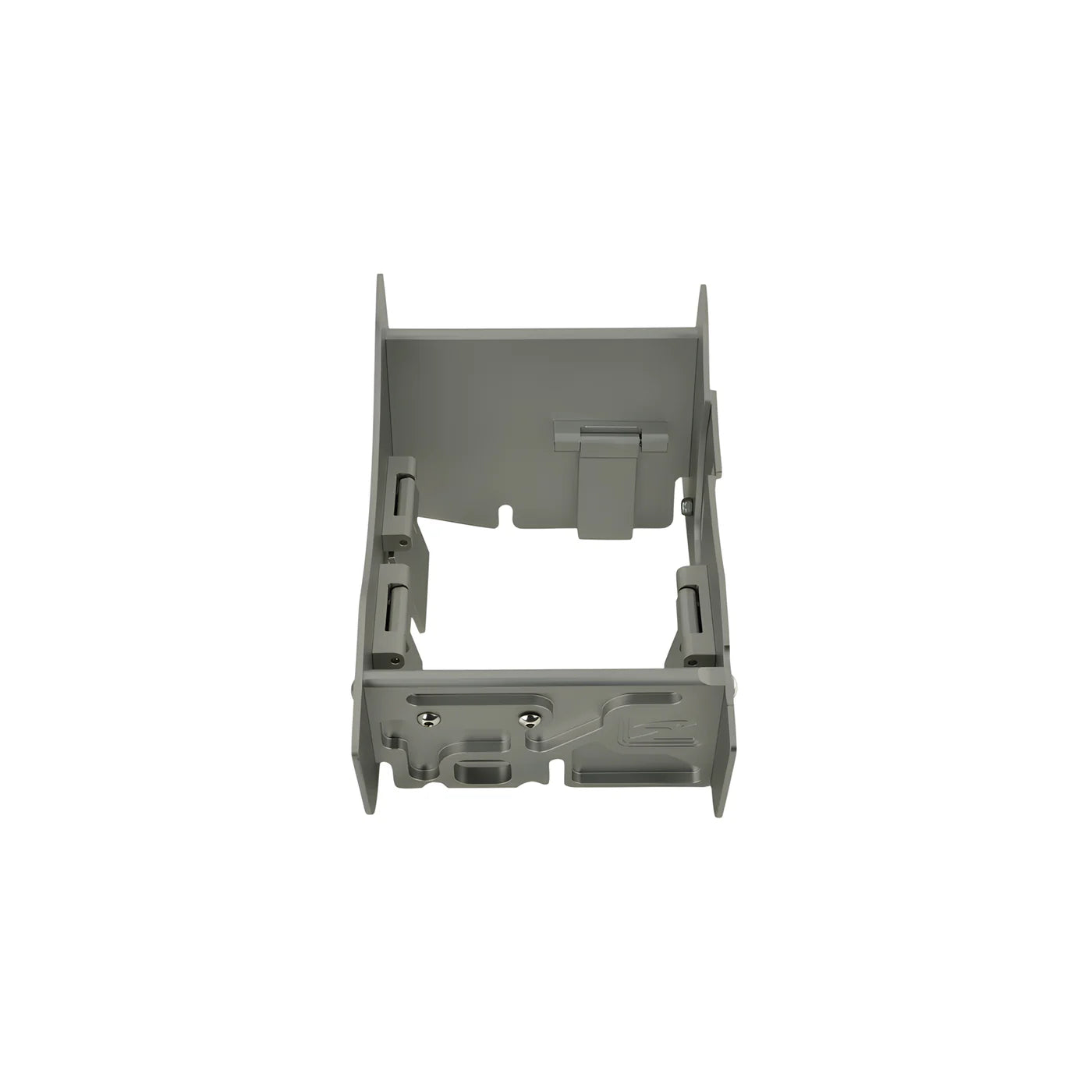

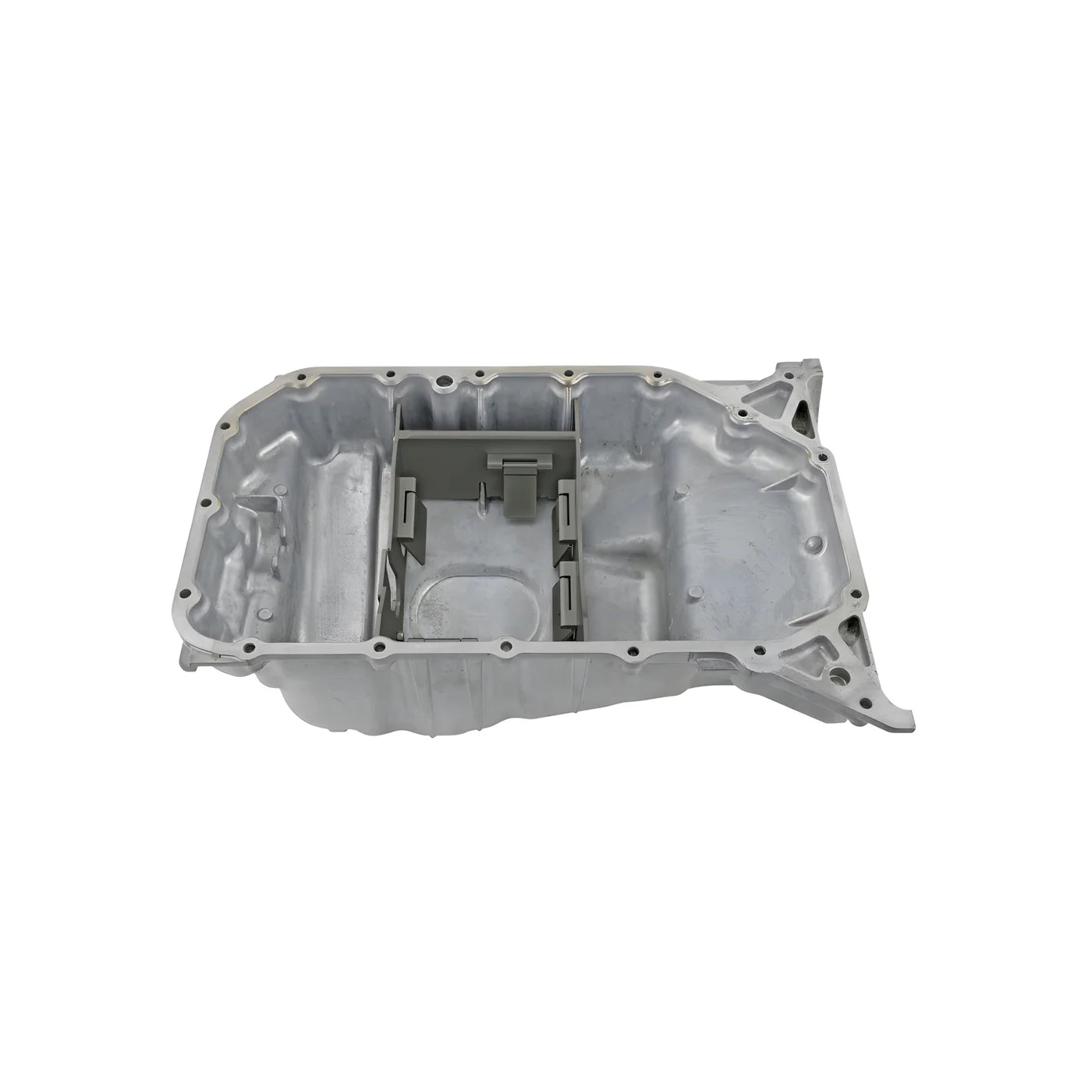

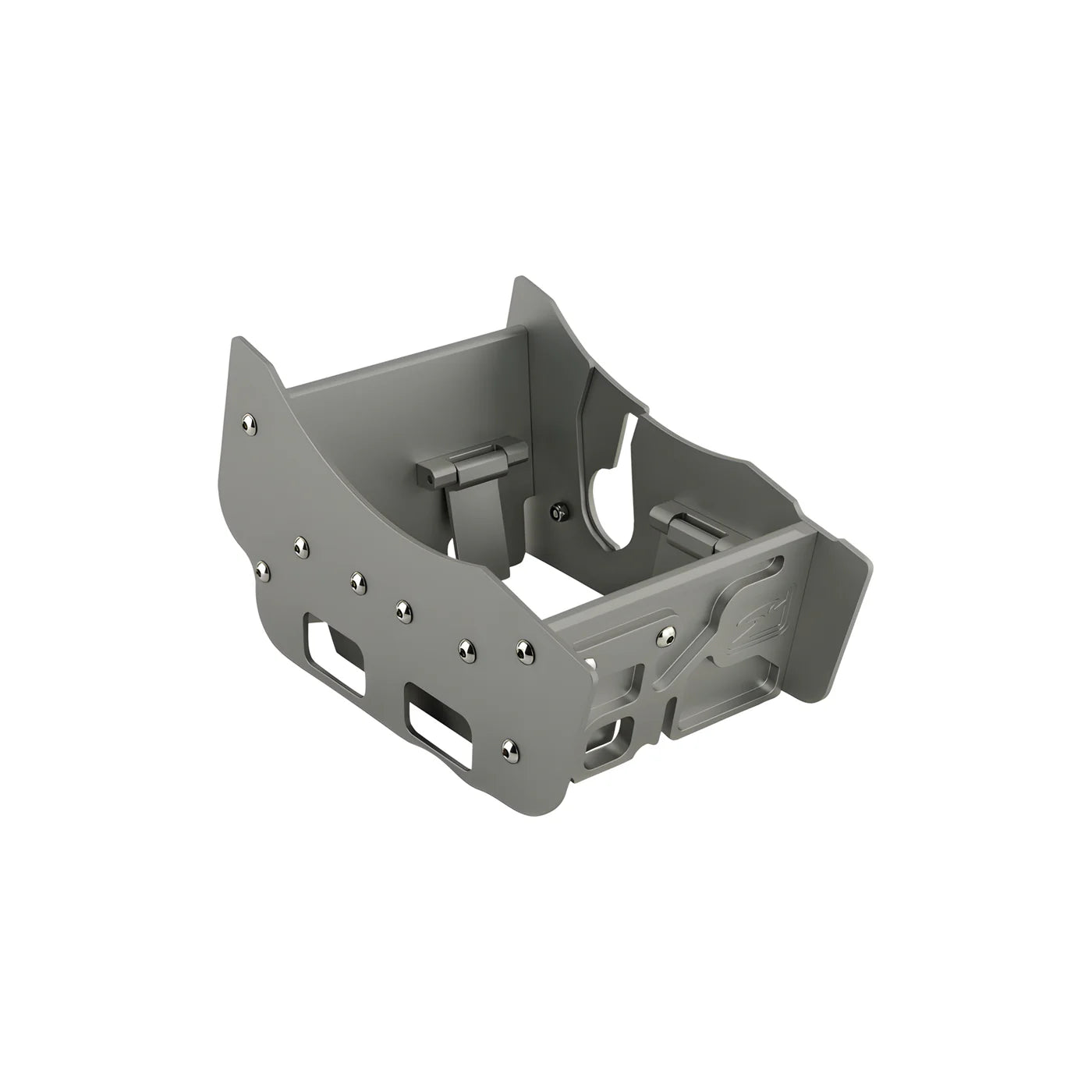

SKUNK2 BILLET DROP IN OIL PAN BAFFLE - K-SERIES

*Direct Drop In Fitment For: Honda K20A/K20A2/K20Z1/K24A

Features:

• Prevents Oil Starvation When Hard Driving
• Cost Effective Oil Control Solution
• Open Top Design for Maximum Return Oil Flow
• One-Way Trap Doors to Keep Oil in Sump Area
• Easy Single-Bolt Installation (No Welding)
• Anodized CNC Billet 6061-T6 Aluminum Construction

K-Series Engine Compatibility:

The Skunk2 Billet Drop-in Baffle is a direct bolt-in application for the JDM DC5/EP3 K20A Type-R Engine as well as the USDM 02-04 K20A2 and 05-06 K20Z1 Acura RSX Type-S engines.

Or

Any other K-Series engines as long as they are installed with the following compatible parts.

Honda Genuine Part Numbers:

1. Oil Pan – (11200-PRB-000 or 11200-RAA-A00)
2. Oil Pump – (15100-PRB-A01) or Similar

*Not Compatible with RRB oil pan

**Not Compatible with any oil pump assemblies with balance shafts
