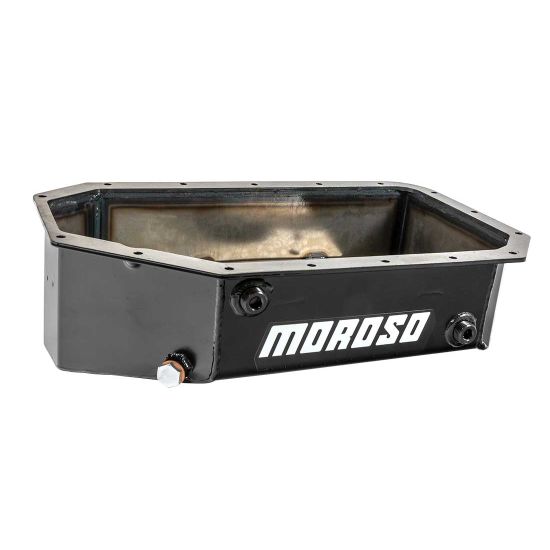

MOROSO STREET / STRIP OIL PAN - K-SERIES

*This pan will now ship in black powder coat from Moroso Powder Coating effective immediately. It will no longer be offered in clear zinc.

Features

• For K-swaps into older Honda/Acura chassis; does not fit DC5 RSX/Integra, CL7/CL9 TSX/Accord and EP3 Civic SI, etc.
• Fully fabricated Black powder coated

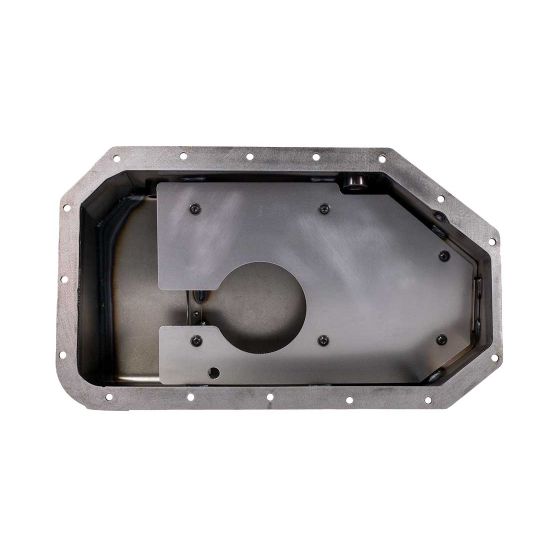

• Trap door assembly and removable anti-slosh baffles for additional oil control
• 1/2" N.P.T. turbo/supercharger drain back and 1/2" N.P.T. temperature sender provisions
• For use with RSX Type-S oil pump (No. 15100-PRB-A01) and windage tray (No. 11211-PNC-000)*

• Steel, Wet Sump, 6.5 Capacity, 6-1/4" Deep, Race Baffled

Vehicle Fitment

• Fits: K-series Engine Swaps into Integra (DA) '90-'93, Integra (DC)'94-'01, Accord (CB) '90-'93, Accord (CD) '94-'97, Civic/CRX: (EF)'88-'91, Civic (EG) '92-'95, Civic (EK) '96-'00, Civic (ES) '01-'05; Fit (GD) '07-'08, Prelude (BB) '92-'96
• For K-swaps into older Honda/Acura chassis; does not fit DC5 RSX/Integra, CL7/CL9 TSX/Accord and EP3 Civic SI, etc.

*Designed to be used with the Acura RSX Type-S oil pump assembly. 100% compatible with K20A2, K20Z1, and JDM K20A DC5/EP3 engines.

**A Type-S oil pump upgrade is required for K20A3 and all K24 engines. A K20Z3 engine is compatible with this pan in a swapped chassis scenario only (see list above). It is NOT compatible within an 06-11 Civic Si chassis or JDM CTR FD2 chassis.

OEM Type-S oil pump part #15100-PRB-A01 and Acura RSX Windage Tray OEM Part #11211-PNC-000 are both required.
