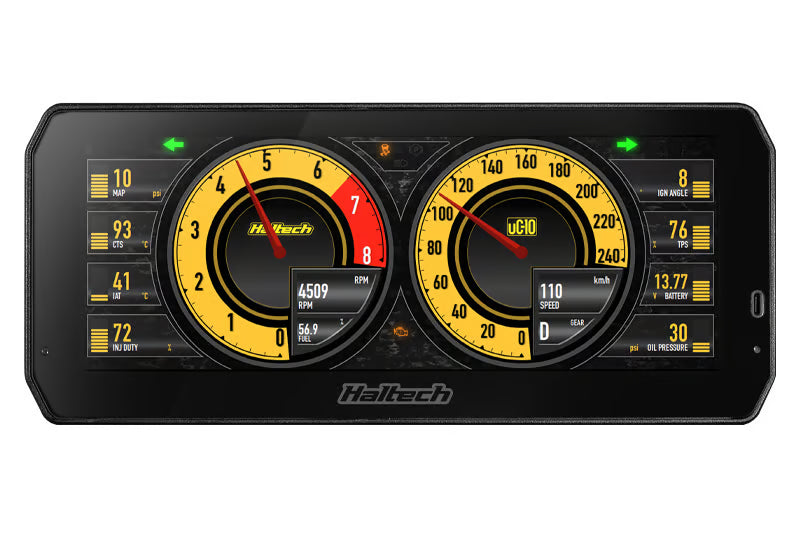

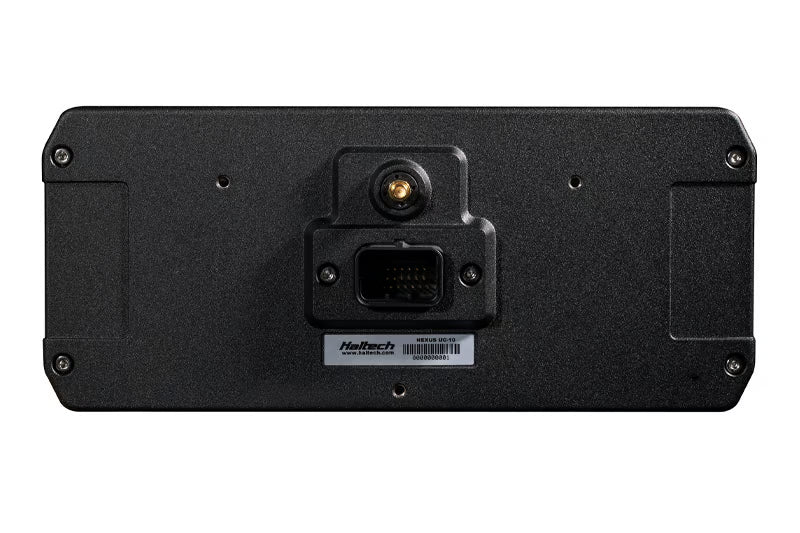

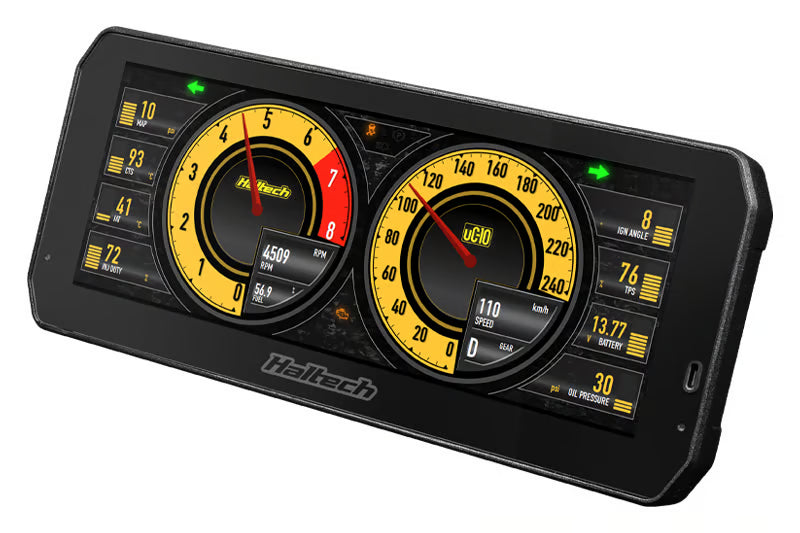

Haltech uC-10 Digital Dash

Suits:

• All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following aftermarket ECU brands: Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

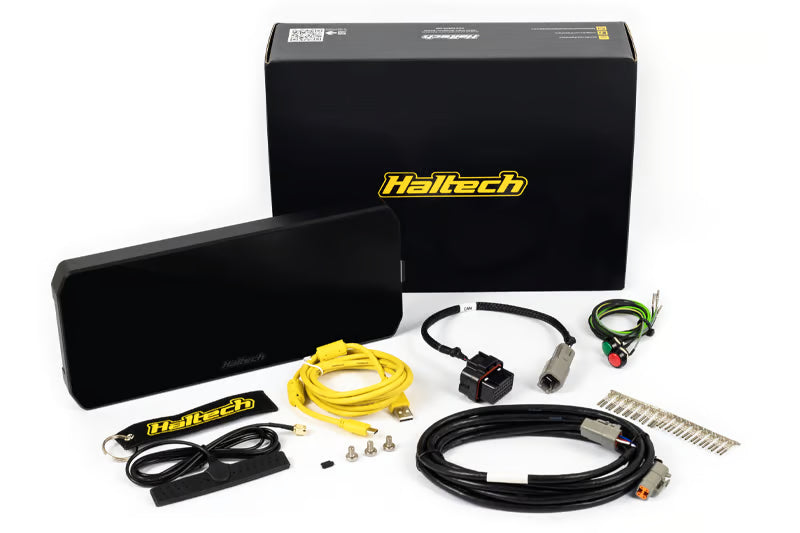

Includes:

• 1 x Haltech uC-10 Digital Dash, 1 x 34P connector - same as HT-131001, 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in), 1 x USB-C cable, 3 x M5 x 8mm mounting screws, 2 x Momentary switches, pre-terminated 800mm 22AWG Cable, 1 x Glass Mount Wi-Fi antenna (Wi-Fi functionality will be made available with future firmware update), 1 x Haltech fabric keytag, Quick Start Guide, Haltech stickers.

Features:

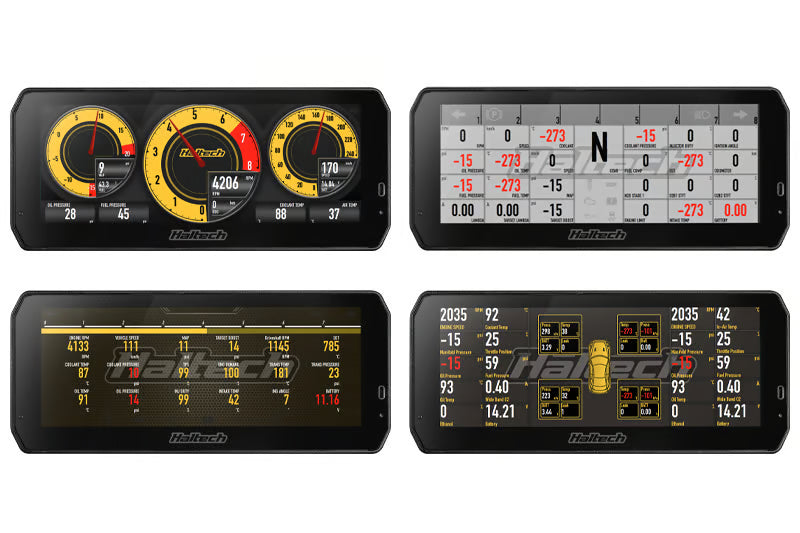

• Full-colour, optically-bonded TFT screen
• 70A Degree minimum viewing angle (vertical and horizontal)
• 1280 x 480 resolution, 600+ lumens
• IP64 (Dust-tight and protected against water splashes)
• 6-digit odometer
• 512MB of on-board looped data logging
• NSP compatible
• 10 x user configurable AVIP's
• 4 x user configurable DPO's
• 4 x user configurable SPI's
• 1 x dedicated Tacho Input
• 1 x dedicated alternator excite
• 2 x Ambient light sensors
