Greddy RS-Ti Universal Oval Muffler

Specifications for 2.5"

• Muffler Type: W260 x H160 x L300mm Oval Titanium (10.2"x6.3"x11.8")
• Type: Straight-through

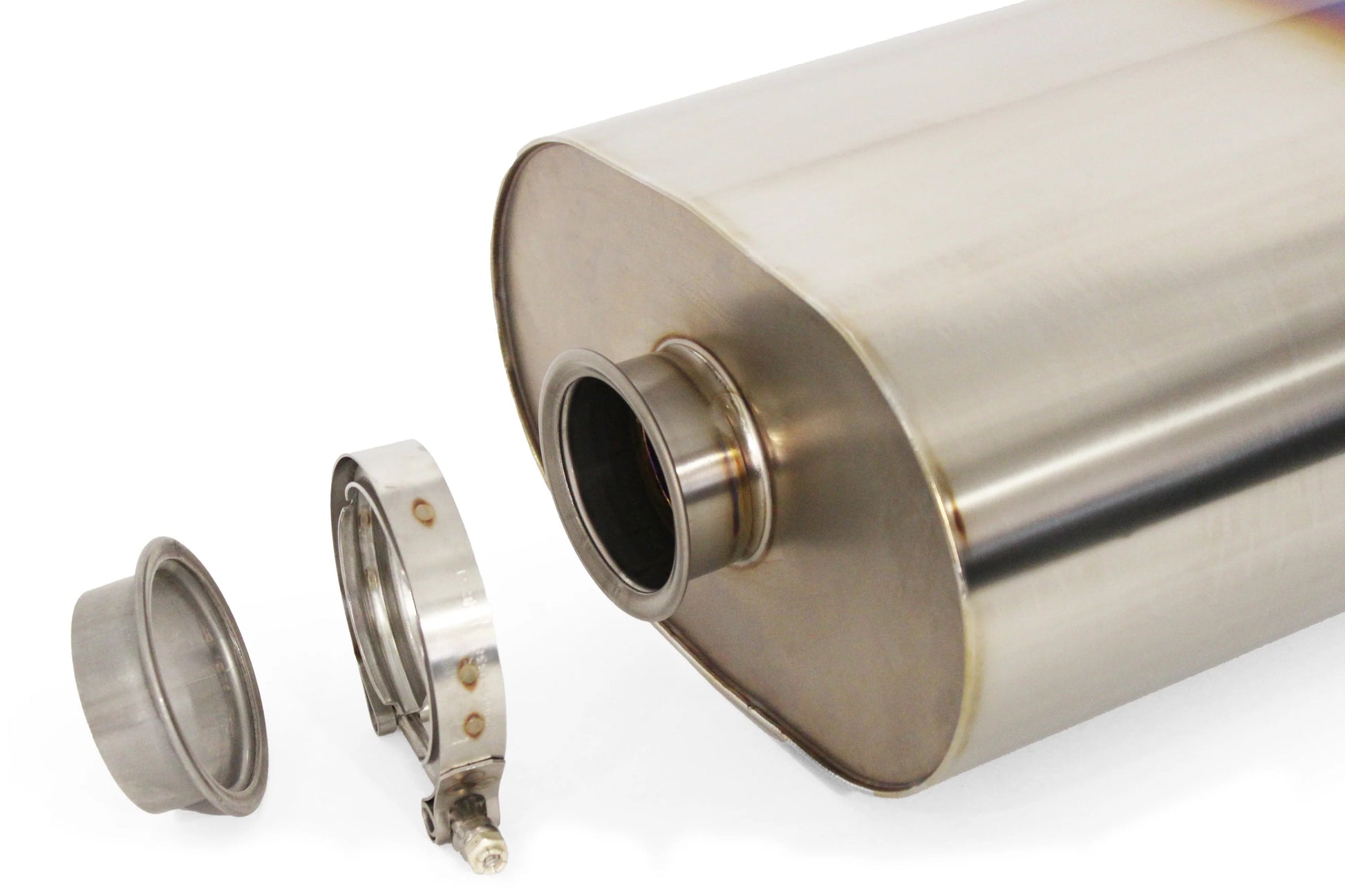

• Inlet : Centered 63.5mm (2.5") V-band flange
• Outlet : Center, Offset 20mm down 103mm (4") RS 3-bolt
• Surface: brunt-Titanium brushed finish

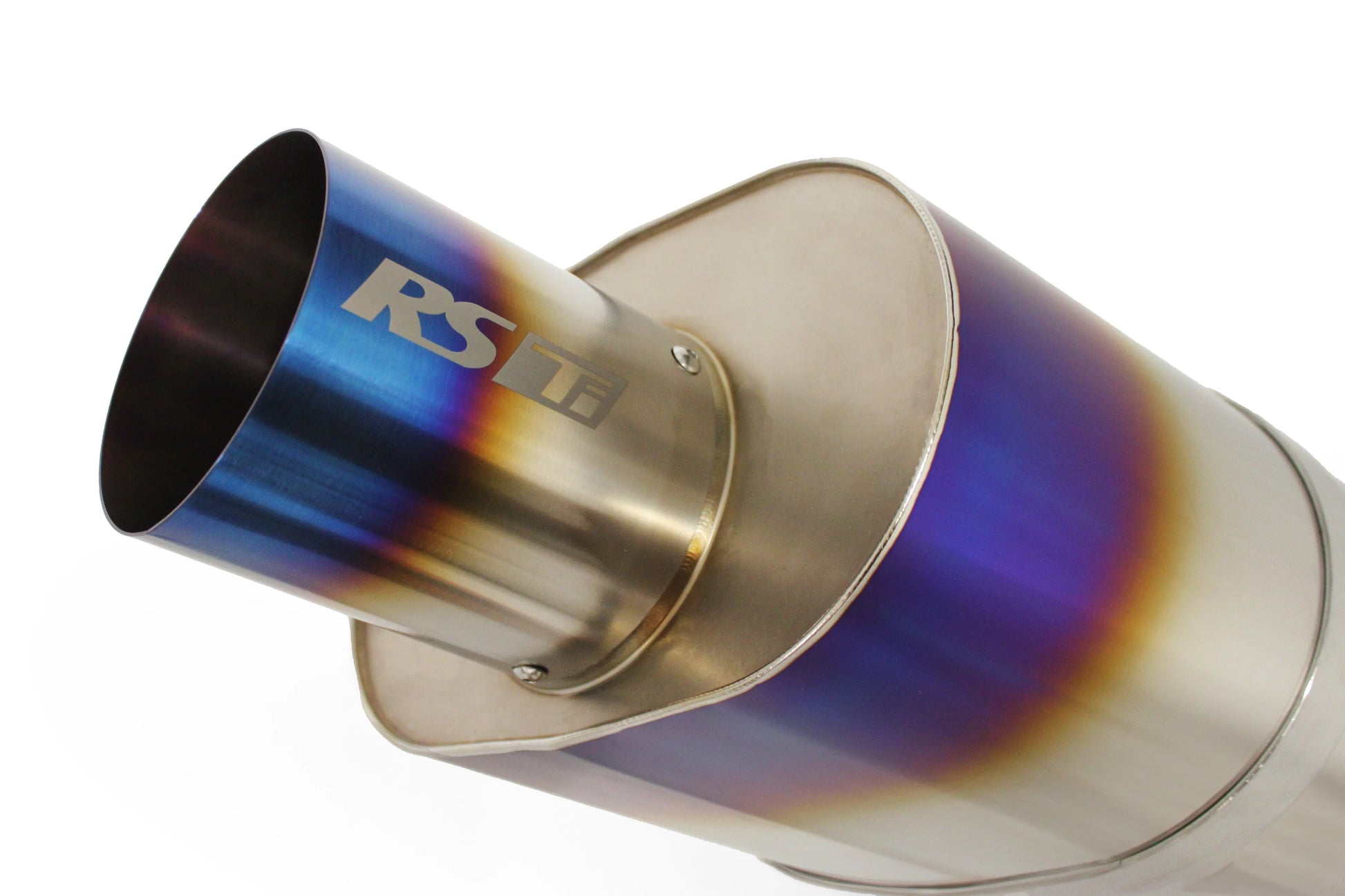

• Tip Type: Removable Single-wall Titanium with RS-Ti Logo with Tri-bolt mounting
• Dia.: 105mm (4.1")
• Length: 120mm (4.7")
• Surface:brunt-Titanium brushed finish, with laser-etched RS-Ti logo

Specifications for 3.0"

• Muffler Type: W260 x H160 x L300mm Oval Titanium (10.2"x6.3"x11.8")
• Type: Straight-through
• Inlet : Centered 76mm (3") V-band flange
• Outlet : Center, Offset 20mm down 103mm (4") RS 3-bolt
• Surface: brunt-Titanium brushed finish
• Tip Type: Removable Single-wall Titanium with RS-Ti Logo with Tri-bolt mounting
• Dia.: 105mm (4.1")
• Length: 120mm (4.7")
• Surface:brunt-Titanium brushed finish, with laser-etched RS-Ti logo

Notes:

• Requires steel welding (and cutting) for mounting and attaching piping.
• Compatible with optional Revolution 105mm RS Tips and Silencers
