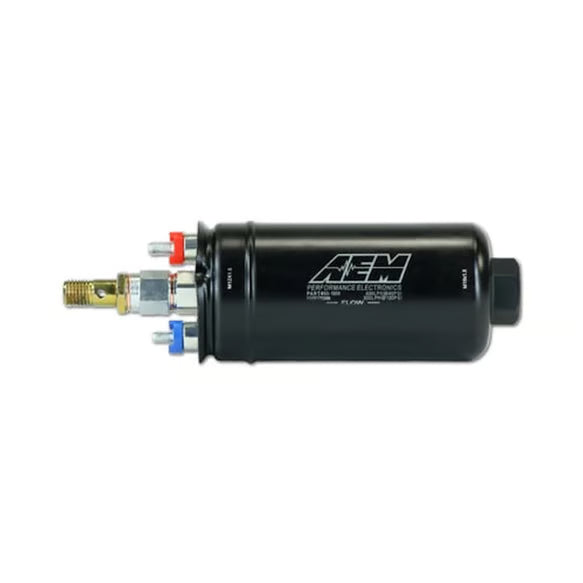

AEM HIGH FLOW 400LPH METRIC INLINE FUEL PUMP - 044 STYLE

Features:

• Designed for high output naturally aspirated and forced induction EFI vehicles
• Popular 044 Style physical configuration with metric fittings for direct replacement of 044 pumps!
• Maintains very high flow even at boosted fuel pressures; 340 lph @ 73 PSI (30 psi boost)
• Each pump individually tested to flow minimum of 400lph (105gph) @ 40 PSI
• For gasoline vehicles (pump life will be diminished when used with alcohol fuels)
• Kit includes fuel pump, check valve fitting, terminal nuts & boots, instructions
• Compatible with Flex Fuel (E85/E90) and all types of gasoline

Technical Specs:

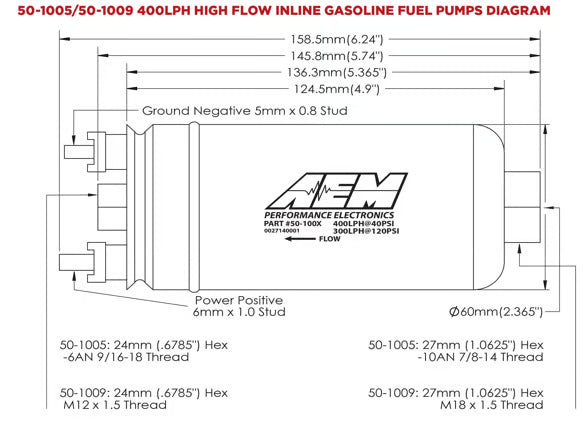

• Weight: 35.8oz (1015 grams)
• Outside Diameter: 60mm OD
• External Materials: Black plated steel with laser etching

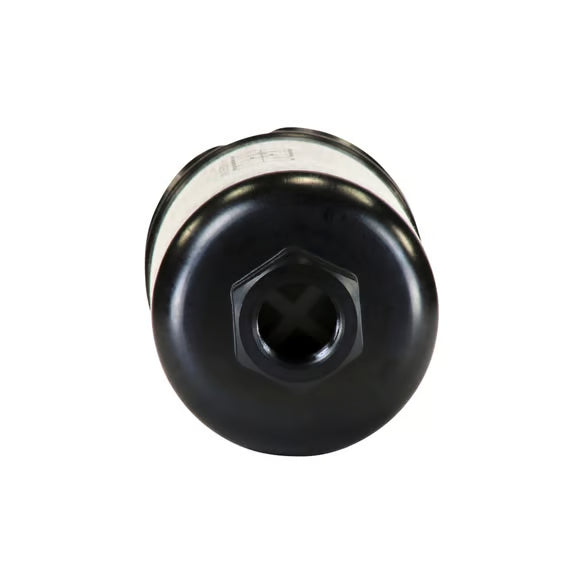

• Inlet Fitting: M18x1.5 female
• Outlet Fitting: M12x1.5 male
• PRV Activation: 150 PSI
• Impeller Design: Roller vane with ceramic end plate

Voltage Specs:

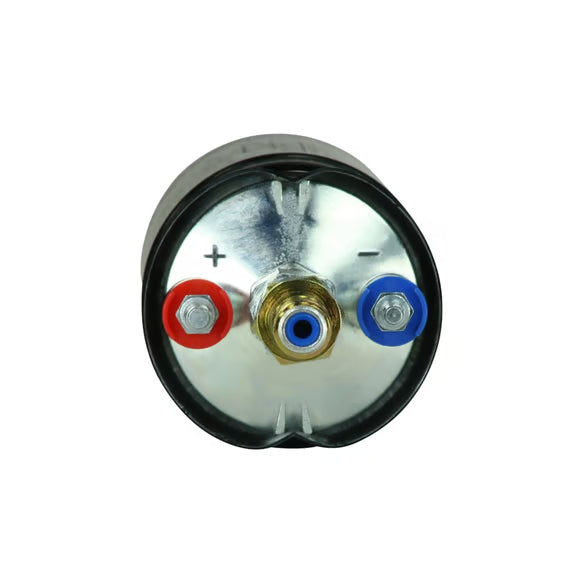

• Connector Terminal: 6mm stud positive, 5mm stud negative
• Min Voltage Input: 10 volts
• Max Voltage Input: 18 volts

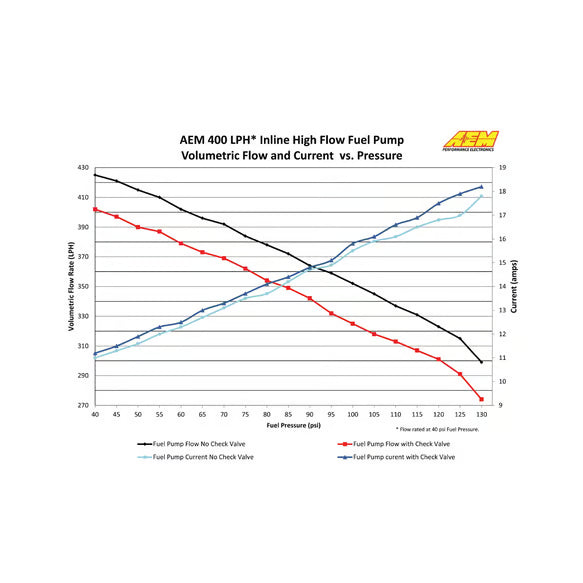

• Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v)
• Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v)
• Fuse: 25 amps (13.5v), 30 amps (13.5v) MAx
