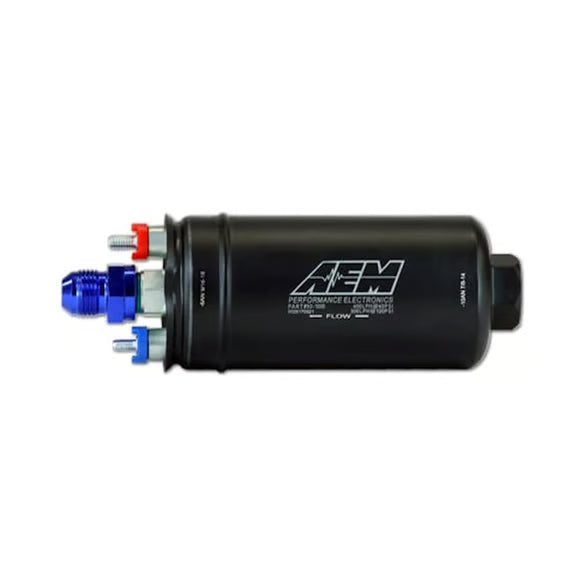

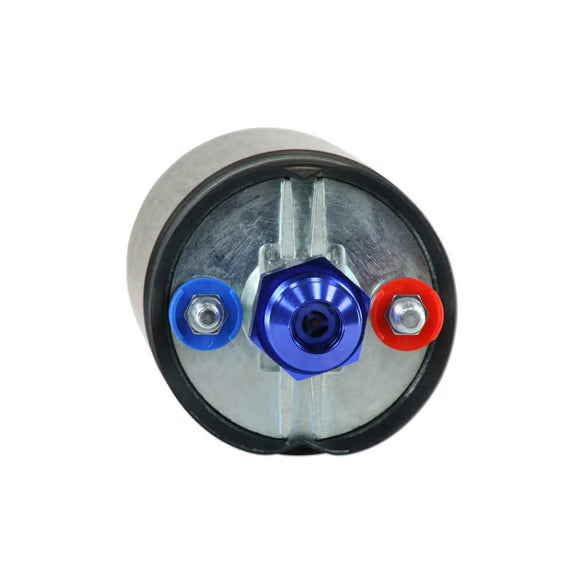

AEM HIGH FLOW 400LPH INLINE FUEL PUMP - UNIVERSAL

Features:

• Designed for high output naturally aspirated and forced induction EFI vehicles
• Popular "044 Style physical configuration but with AN inlet & discharge port connections
• Maintains very high flow even at boosted fuel pressures; 340 lph @ 73 PSI (30 psi boost)
• Installs externally or in-tank
• Each pump individually tested to flow minimum of 380lph (100gph) @ 43 PSI
• For gasoline vehicles (pump life will be diminished when used with alcohol fuels)
• Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions

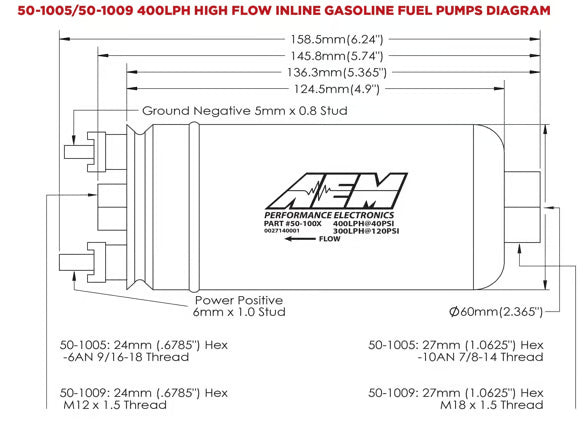

TECHNICAL SPECS:

• Weight: 12.5oz (354grams)
• Outside Diameter: 60mm OD
• External Materials: Black plated steel with laser etching, with zamac discharge end cap
• Inlet Fitting: -10AN 7/8"-14 Female
• Outlet Fitting: -6AN 9/16"-18 Female
• PRV Activation: 150 PSI
• Impeller Design: Roller vane with ceramic end plate

VOLTAGE SPECS:

• Connector Terminal: 6mm stud positive, 5mm stud negative
• Min Voltage Input: 10 volts
• Max Voltage Input: 18 volts

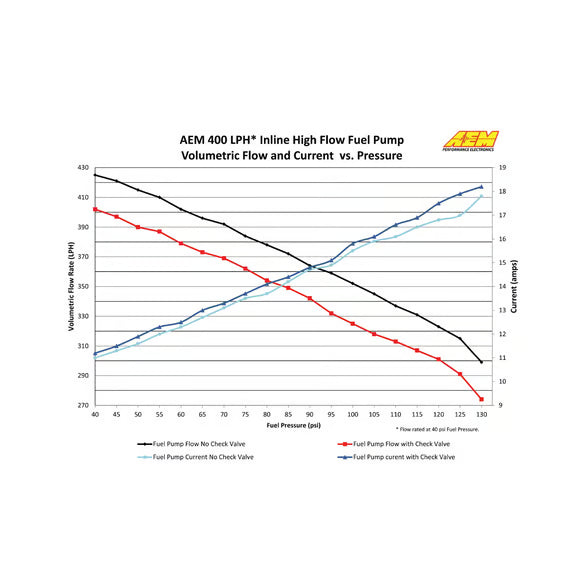

• Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v)
• Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v)
