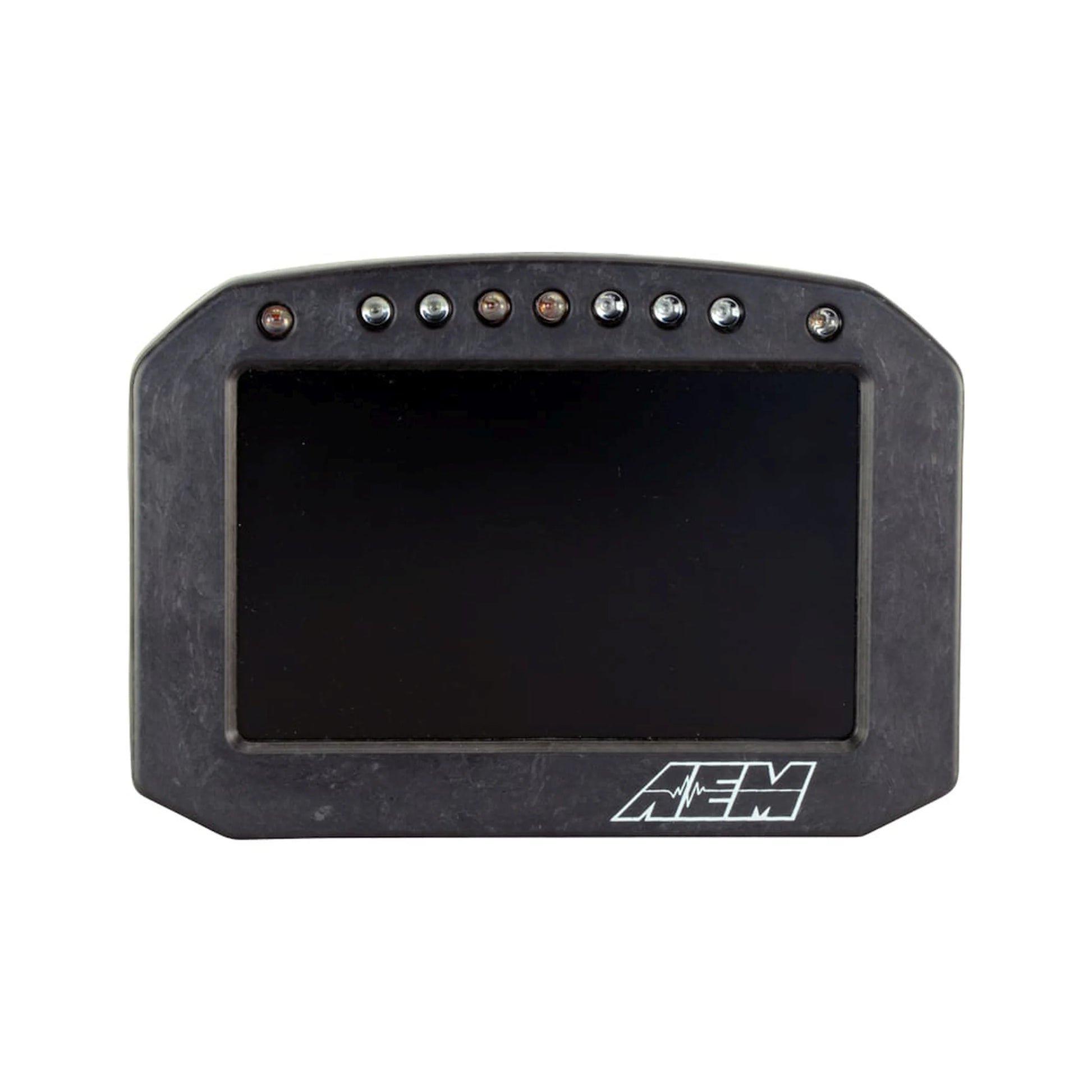

AEM Electronics CD-5G Carbon GPS-Enabled Carbon Flat Panel Digital Dash Display

Two additional programmable LEDs are included in the enclosure and are fully programmable.

Features:

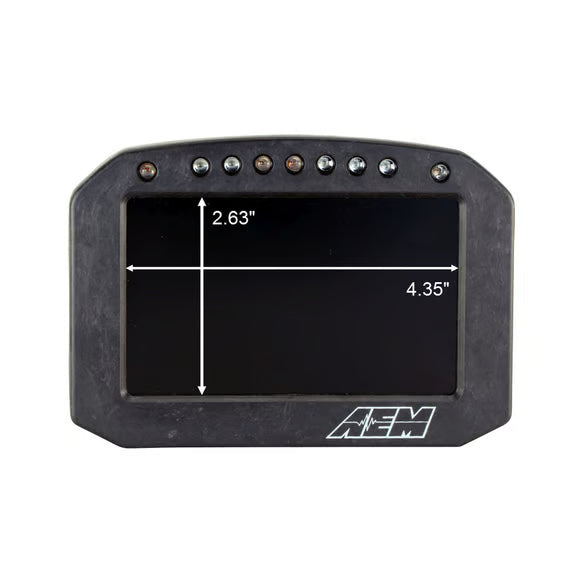

• Full color 5? screen with 800x480 resolution
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable between all CD Carbon Dashes

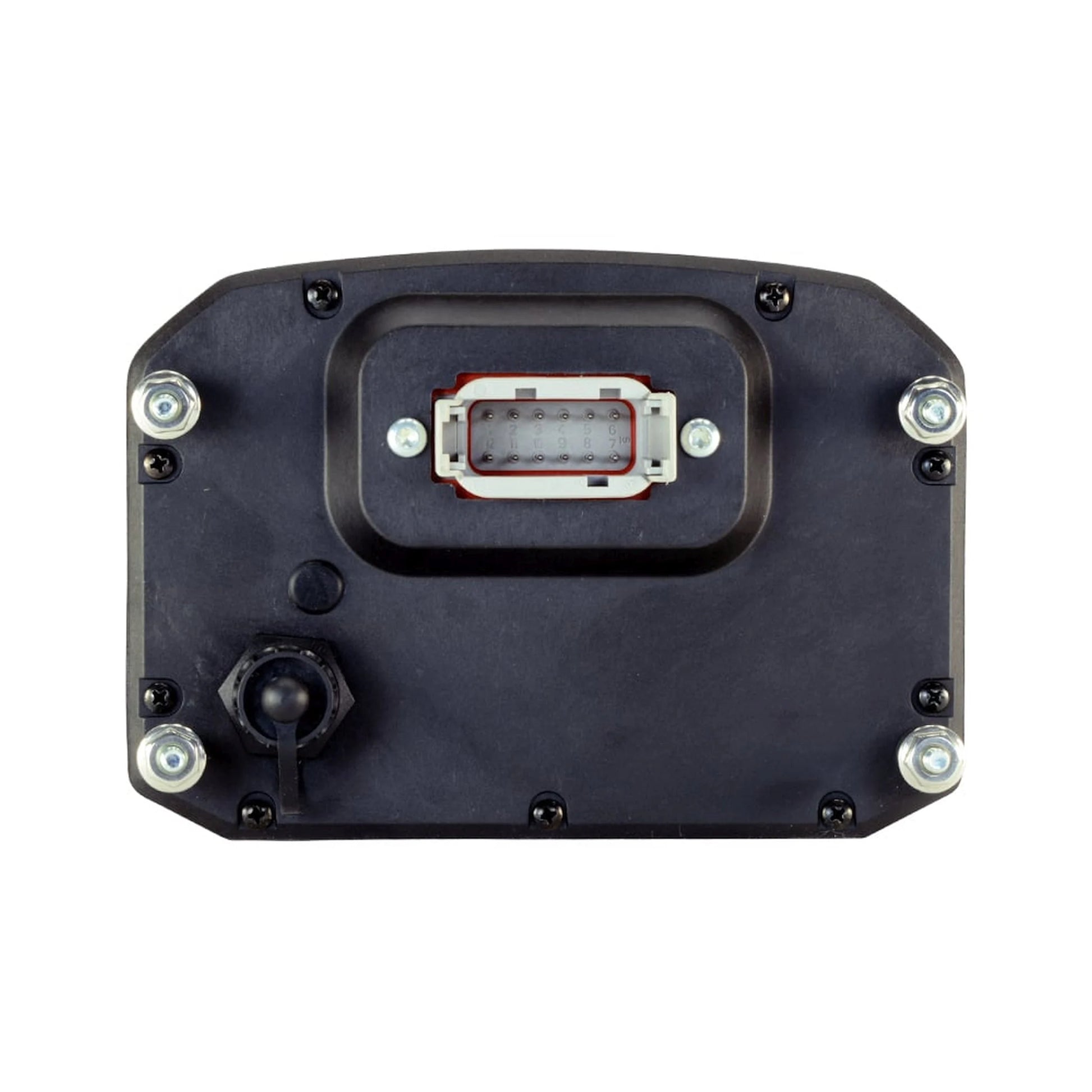

• Wiring interface/harnesses are identical between all CD Carbon Dashes
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• IP66 water resistance open cockpit safe
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)

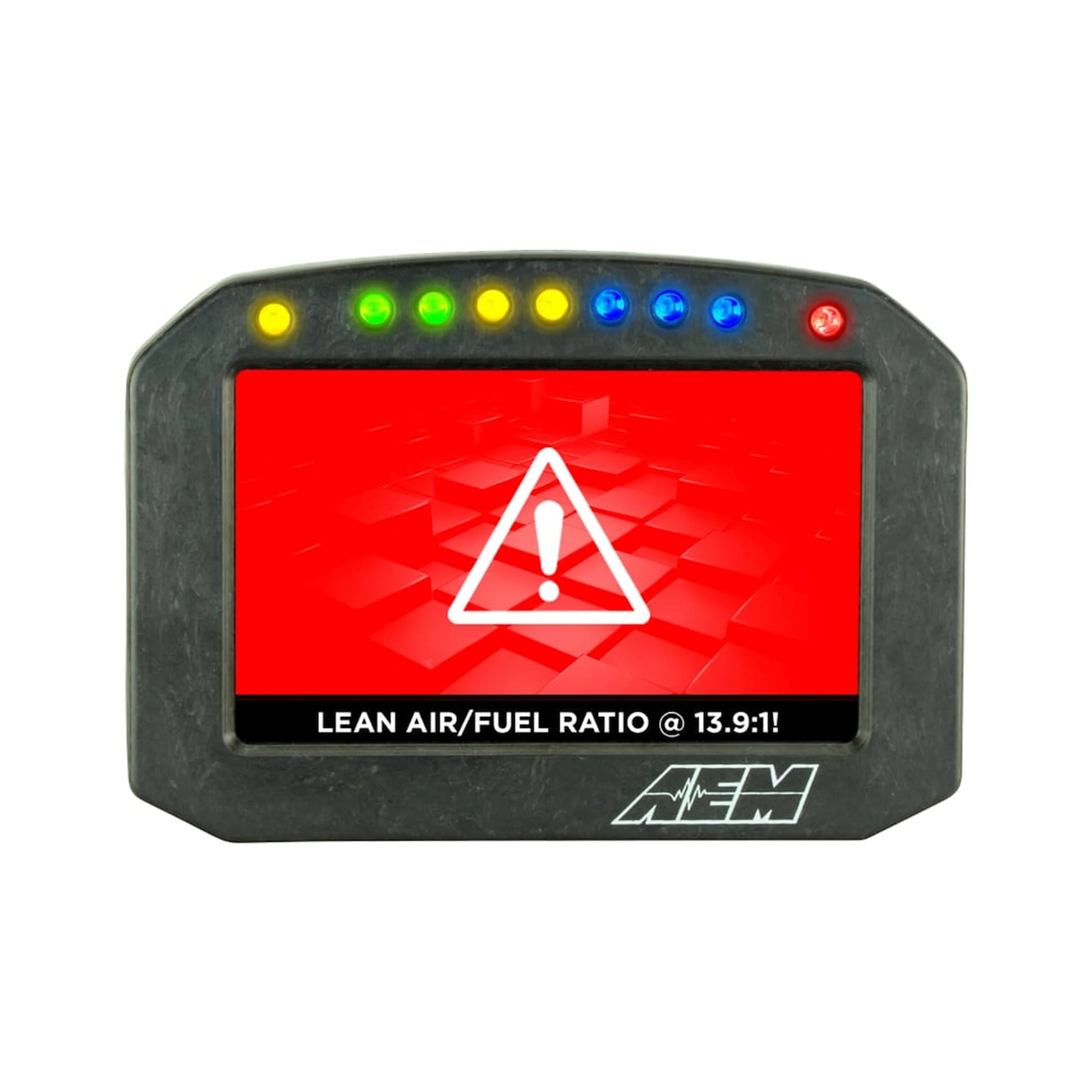

• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use the included page layouts and input your channels and text, or create your own from scratch
• Free DashDesign Graphics Editor software
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Two programmable LEDs
• Odometer function
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• ?Headlight-in' connection dims the dash and LEDs during night operation
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Convert CAN bus channel values to user-defined text
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
• Install 8 additional temp inputs and send them to the CD Carbon Dash with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)

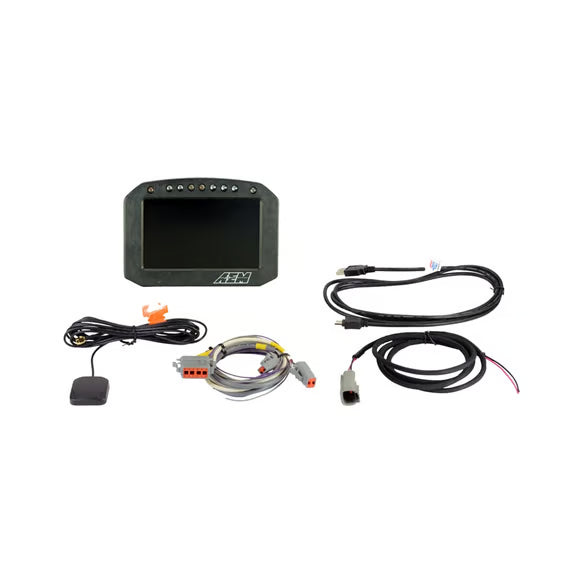

• Available with or without onboard 20 Hz GPS receiver and antenna
• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
